Exterior
Everything from Fog Lights, R-Lights, to Complete RSR Conversion Kits.
TRE 911R Conversion Kit
TRE 911R Conversion Kit
19 special prototype 911s were built by Porsche’s race engineers. Together with a composites manufacturer, the techs started with 912 based shells in 1967, with no undercoating, no rust preventative caulking or insulation. Totally bare interiors painted semi flat black directly on the metal with a roll bar and two lightweight fiberglass seats. A dash cover was their only compromise as it was needed to stop the reflections of the gauges, on the windshield, during night driving. Fiberglass panels were employed for the doors, lids, front fenders, and bumpers. The stock hinges were deemed too heavy, so light metal pieces that fastened through the outer part of the lid and body were used. Plastic windows were fitted throughout with the exception of the windshield.
Simple lamps , sourced from trailers and other small cars, replaced the front and rear stock items. Anything to save weight without compromising the drive train and suspension was brought to bear.
Now we don’t advocate the used of hollow fiberglass doors for the street (but they are available from us as well) . So our basic kit , outlined below, shows what is needed to convert the body of either a 65-68 or 69-73 model to the 911R theme.
The fiberglass used is twill cloth with clear resin for the inner lid frames, white gel coat exterior. The bumpers and fenders also feature twill cloth, with white gel coat exterior. We include a new pair of steel buckets to secure the expensive head lamps.
Our Basic Kit Includes the following:
-TRE R Style Front Bumper- needs to be fastened to the lower edges of the front fenders
-TRE 911 Front Hood w/ Tie Downs (center fill option available separately)

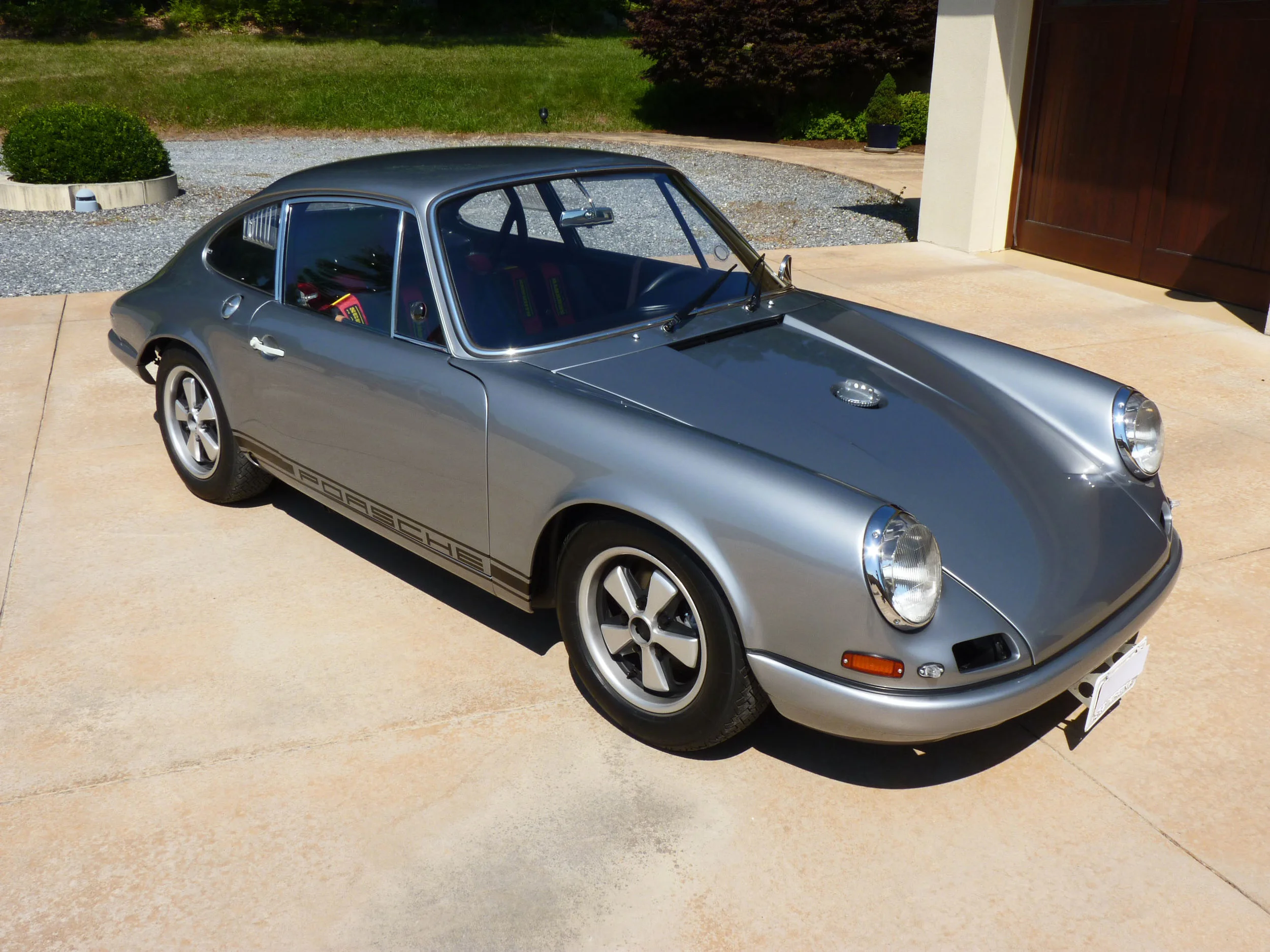

-TRE R Style Rear Bumper (pictured on the silver car)
-TRE Rear 911R Decklid w/ Prop and screen
TRE Rear 911R deck lid hinge pair
-TRE Rear Lid Straps
-Reproduction Front R Fenders
Front turn signal and city lamp kit
-TRE 911R Rear Light Kit
PLEASE CONTACT US FOR FURTHER OPTIONS, INCLUDING CENTER FILL KITS, CENTER FILL 100 L TANKS, PLASTIC WINDOW SET , PLASTIC EXTERIOR DOOR HANDLES, ROLL BAR, R SEATS, GAUGE MODS, 7R REPLICA WHEELS, EXHAUST SYSTEMS, AND MORE
Prices DO NOT include packaging, shipping and handling. CONTACT US TO PROCESS YOUR ORDER
Porsche's race department was commissioned to build an ultra light version of the 911 using lightweight materials, deleted items, and performance upgrades. This short wheel base car (of which only 19 were ever made) became a legend. This, even though it was never built in sufficient numbers to be homologated for racing similar cars. It still gained notoriety in various epreuves and many fans love the raw character of this car today.
We have compiled a list of parts here (which, with the exception of the early fuchs 7R wheels) we can supply so you can build your own. Note that this treatment can be applied to either a 1965-68 or 69 and newer model to achieve the flavor and style of the legendary 911R !
Note: Some of these items are considered for Racing Purposes Only. As such you need to fill out our disclaimer form and fax it to us at time of order
Front hood Lightweight fiberglass with foam core underlay for strength. Available in 1965-73 and backdate version 1974-89. Also available per special order with the balsa wood inserts. Finished in black gel coat.
Hood prop A later factory supplied item that finishes off the installation and allows easy access to the front compartment
Front bumper A Quality new molding that fits right!
Front Rubber/ stainless tie downs Rubber toggles to hold down the hood
Front fenders High quality fiberglass molded fenders available with or without gas door area (Accepts your original gas door) We have the front area filled in at time of molding. You have to cut out the vent area for the cooler ducting. We supply a template for this task.

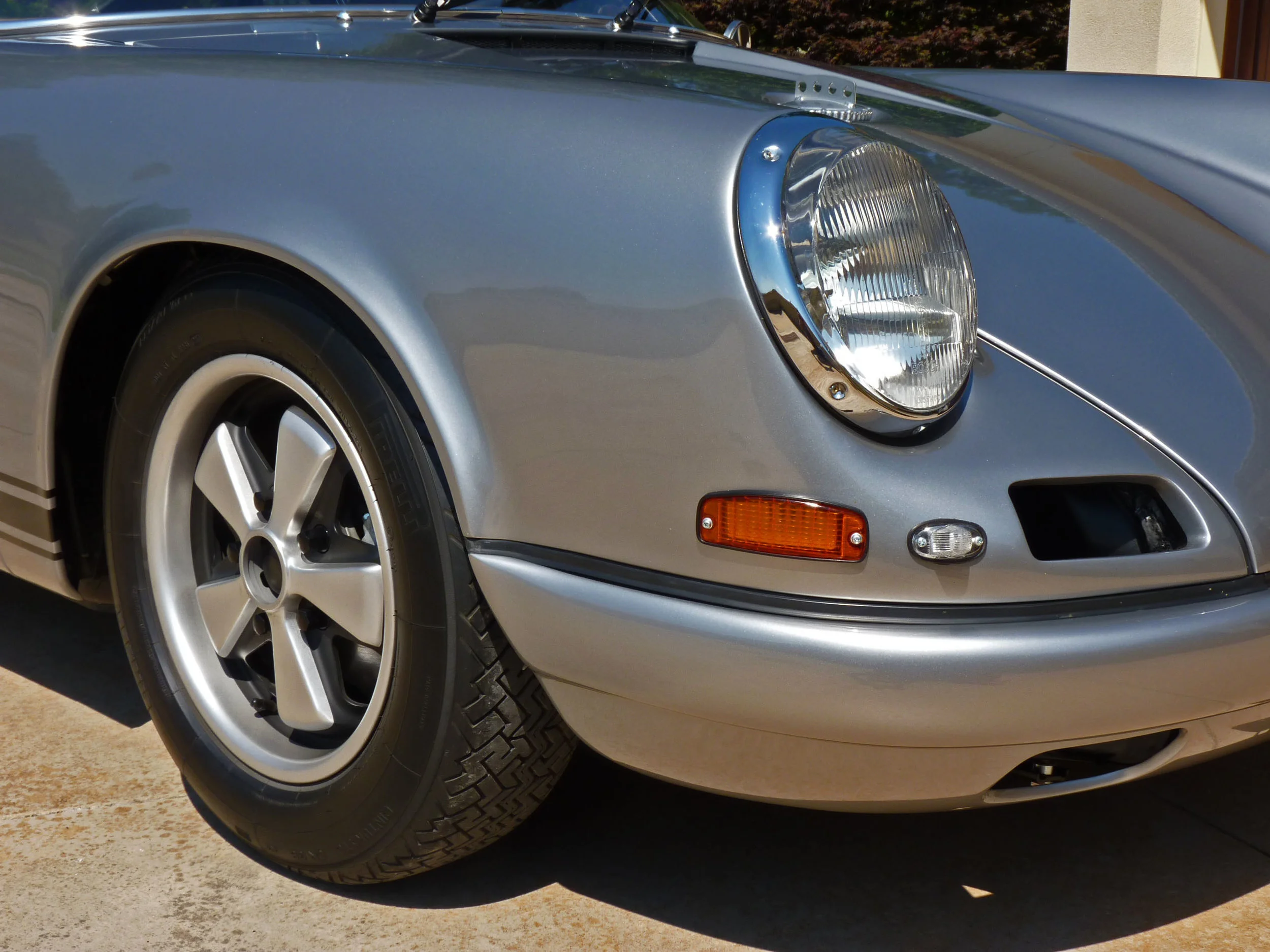

Front 911R turnsignal lamps Our precision molded insert made for 69-73 fenders. We have two versions available: A 911R styled long unit with incorporated oil cooler duct, lamp, and hardwareor the short version with no duct , which allows you to install a screen or horn grill on the fender
Center fill gas tank This made to order part begins with a new reproduction gas tank. We modify it to accept the correct bung with hidden locked gas cap. The finishing touch is a polished cap with the "holey" blade. The drip tray has provisions for overflow/ rain to run to the ground
911R doors Precision molded fiberglass replicas of the 911R door. Requires trimming , fitting of hinges, latch, door handles and window /frame hardware. Companion aluminum hinges are available
911R windows We have formed and trimmed plastic replica windows for the doors. The large slide up and the small triangular unit with bubble vent. We also have those unique louvered rear quarter windows in several versions. Closed or open, for glue in as original, or fixed with rubber seal/trim , and finally for opening style. We also have a formed and shaped back window that gets mounted in the oe rubber seal
911R door handles Save over 4 lbs with these plastic beauties! Will accept the oe lock cylinders if you wish. Comes with push button spring loaded actuator
Rear flares If your car is a 1965-1968, then you will need a pair of these flares to allow for the wider wheels
Rear bumper Available in short and long wheel base styles. Please inquire if we have a model for your car chassis
Rear deck lid Fiberglass rear lid
Rear lid prop A version for the rear
Rear lid grill We custom make grills to several specifications- Inquire for more detail
911R rear hinges We have some of the best fitting and looking replica hinges made! Stainless steel construction, hardware and finished off just right
Rear lid hold downs Rubber /stainless steel pull downs to keep the lid shut tight
911R rear lamps Precision molded housings support various configurations (red / amber- red, white/amber- red, yellow-red, etc) of lenses and bulbs
Rear reflectors replica reflectors to finish off the back
